THE PRODUCT
Washing machines, dishwashers, reverse osmosis filtration systems, water dispensers, coffee machines or other machines collecting water automatically from the water installation pose a potential risk of an uncontrolled spillage of water in the case of:
• a broken water hose,
• punctured internal elements (drum, pump, pipes, etc.),
• a failure of the water-collection and dosage system.

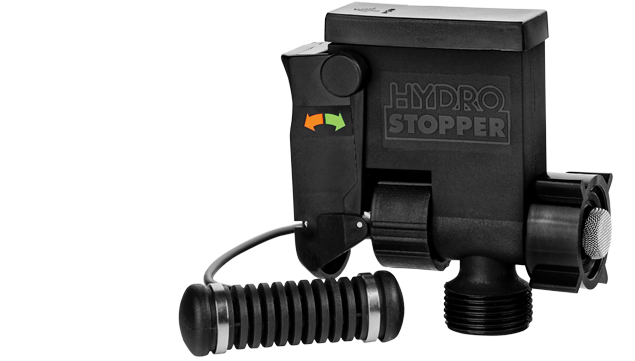

HYDRO-STOPPER is a reliable and electronically controlled cut-off valve which is small and easy to install by any user. Owing to a unique technical solution of detecting a leakage of water and the execution system the valve can be powered with a single alkaline 1.5V AA LR6 battery or lithium L91 AA battery. The system consumes power (0,45 A) only during the activation (0,01 s) of the water cut-off mechanism. In the stand-by mode, the electronic valve control system is fed with a practically unmeasurable electric current of under 1 nA. Consequently, it is possible to assume that there is no consumption of power in the stand-by mode. For lithium L91 AA battery stand-by time can be more than 10 years.
HOW IT WORKS
It's just few easy steps
Connect hoses
Hydro-Stopper valve have standard 3/4

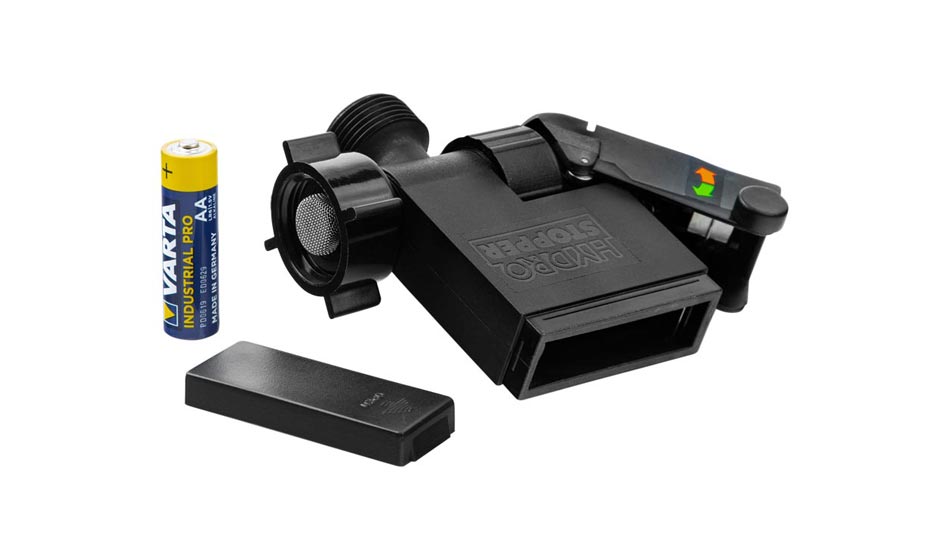

Install batery
Hydro-Stopper uses AA batery
Place sensor
Lay sensor on the floor
Activation
Instant cut-off action
BENEFITS
There are many advantages of investing in a Hydro-stopper product when flood-proofing your property. There is nothing worse than standing inside your house and looking at the standing water in your floor. Leaks not only waste water, but the damage to a house from a leak can be incredibly expensive . What will be the damage when the water is finally pumped out?
At HYDROSTOP ELECTRONIC we know that you will be rewarded with a large number of advantages if you invest in a Hydro-stopper product. Here is why:
HYDROSTOP ELECTRONIC
is well established on the domestic market with thousands of installations. Our products are sold through a number of distributors
Design
Our product is designed to provide maximum flexibility, any position assembly, independent power supply
Flexibility
The flexibility of our product also means that the overall cost of the anti-flooding solution will be significantly lower than in cases where other products are used
HYDROSTOP ELECTRONIC
has existed since the early 1990s and developed the first flood preventing product supplied from 1,5V battery source on the market. Product development and production have always been approached in an innovative way in order to continuously offer the most reliable cut-off valve
Tested
Our products are thoroughly tested and approved according to the harmonized EU standards
Worth?
A major advantage of anti-flooding products is, of course, the fact that you protect yourself from the costs associated with flooding. Hydro-stopper gives you an additional, foremost sense of security, as we believe, is worth investing in
TECHNICAL DATA
HYDRO-STOPPER can be used either on a cold water tap or a hot water one (to 70o Cels.).
- water pressure (maximum) 1,0 MPa = 10 bar (tested up to 15 bar)
- Valve inlet ¾’’ female thread
- Valve outlet ¾’’ thread
- water flow 25L/min at 4 bar water pressure
- valve casing made of polyamide 6.6 and strengthened by 30% of glass fibre, (DuPont Zytel 70G30HSLRBK and FG70G30HSR3 BK309, anti-toxic)
- energy supply: one alkaline battery LR6 1,5V (AA) or lithium battery L91 1,5V (AA)
- power consumption: stand-by mode: no consumption (<1nA) cut-off action: 400mA in 0,01s battery should be changed before the date has expired
- dimensions 90x90x40 mm (HxWxT)
- sensor cable length : 2m (H001) or 2m+2m (H001ds)
- European patent: 057 24 46
